project snapshot
| DETAIL | INFO |
|---|---|
| Location | Loomis Place, New Haven, CT |
| Service | Main Water Valve Replacement |
| Equipment | 3-inch Post-Meter Main Shut-Off Valve |
| Key Components | Ball valve assembly, 1/4-inch pressure gauge, isolation fittings |
| Service Time | 3 hours |
The Main Water Shut-off Valve Was No Longer Working
A homeowner on Loomis Place in New Haven reached out to our team with a straightforward but urgent concern: the main water shut-off valve serving their property was no longer reliable. A valve that cannot fully isolate a home's water supply is not just an inconvenience; it is a liability. One burst pipe, one plumbing emergency in the middle of the night, and there would be no way to stop the water fast. That is a risk no homeowner should carry.
New Haven, CT, properties built or updated in earlier decades often have aging gate valves installed at the post-meter position. These valves corrode internally over time, seize up under pressure, and eventually fail to close completely. When that happens, the home loses its first and most critical line of defense against water damage.
The homeowner knew a replacement was necessary. What they needed was a team they could trust to handle it cleanly, correctly, and without disrupting their day any longer than necessary. That is exactly what our
New Haven, CT plumbing specialists delivered.
How High Rock Water Identified The Faulty Isolation Valve
When our team arrived at Loomis Place, we began with a full assessment of the existing post-meter condition before touching a single fitting. Our plumbing inspection process confirmed what the homeowner suspected: the existing isolation valve had reached the end of its service life. The valve body showed significant wear, and the mechanism no longer provided a true, full-bore shutoff, a critical failure for any main water entry point.
We also evaluated where the water source isolation would need to happen. Under Connecticut plumbing code and standard utility protocol, any shutoff at or before the curb stop is the responsibility of the local water authority, not the homeowner, and not the contractor. Our team coordinated that boundary clearly so the homeowner understood exactly what was within our scope and what would involve the utility. That kind of transparency is part of every free plumbing inspection we conduct across New Haven.
We also noted pressure irregularities at the entry point — a detail that would shape our solution.
Our Plumbers' Main Shut-Off Valve Solution
Our plumbing team specified a full-bore 3-inch ball valve for the post-meter main shut-off replacement. Ball valves are the modern code-preferred choice for main water service lines precisely because they deliver a true quarter-turn shutoff, a bubble-tight seal, and a service life measured in decades rather than years. Unlike older gate valve designs, a ball valve does not rely on a seating surface that degrades with every turn.
To address the pressure irregularities we identified during diagnosis, we incorporated a 1/4-inch pressure gauge into the installation at the water entry point. This gauge gives the homeowner and any future service technician an immediate, at-a-glance reading of the incoming water pressure — a small addition that delivers significant long-term value. Chronically high water pressure is one of the leading causes of premature water heater failure, pinhole leaks in copper lines, and accelerated wear on fixture valves throughout a New Haven home.
Every component we selected met the requirements of the 2022 Connecticut State Plumbing Code, ensuring the installation would pass inspection and hold up for the life of the home.
How Our CT Plumbing Team Replaced The Main Water Shut-off Valve
Our New Haven plumbing specialists executed the replacement in a clean, logical sequence designed to minimize time off water and protect the integrity of the home's supply system.
- We coordinated with the property to confirm that water from the road via the curb stop did not require isolation by the local water authority, allowing our team to proceed with an internal shutoff at the existing meter.
- We systematically drained the property's supply lines to relieve pressure throughout the system and prepare the entry point for clean, dry work.
- Our team removed the existing isolation valve and all associated miscellaneous piping that had accumulated at the post-meter entry point over the years.

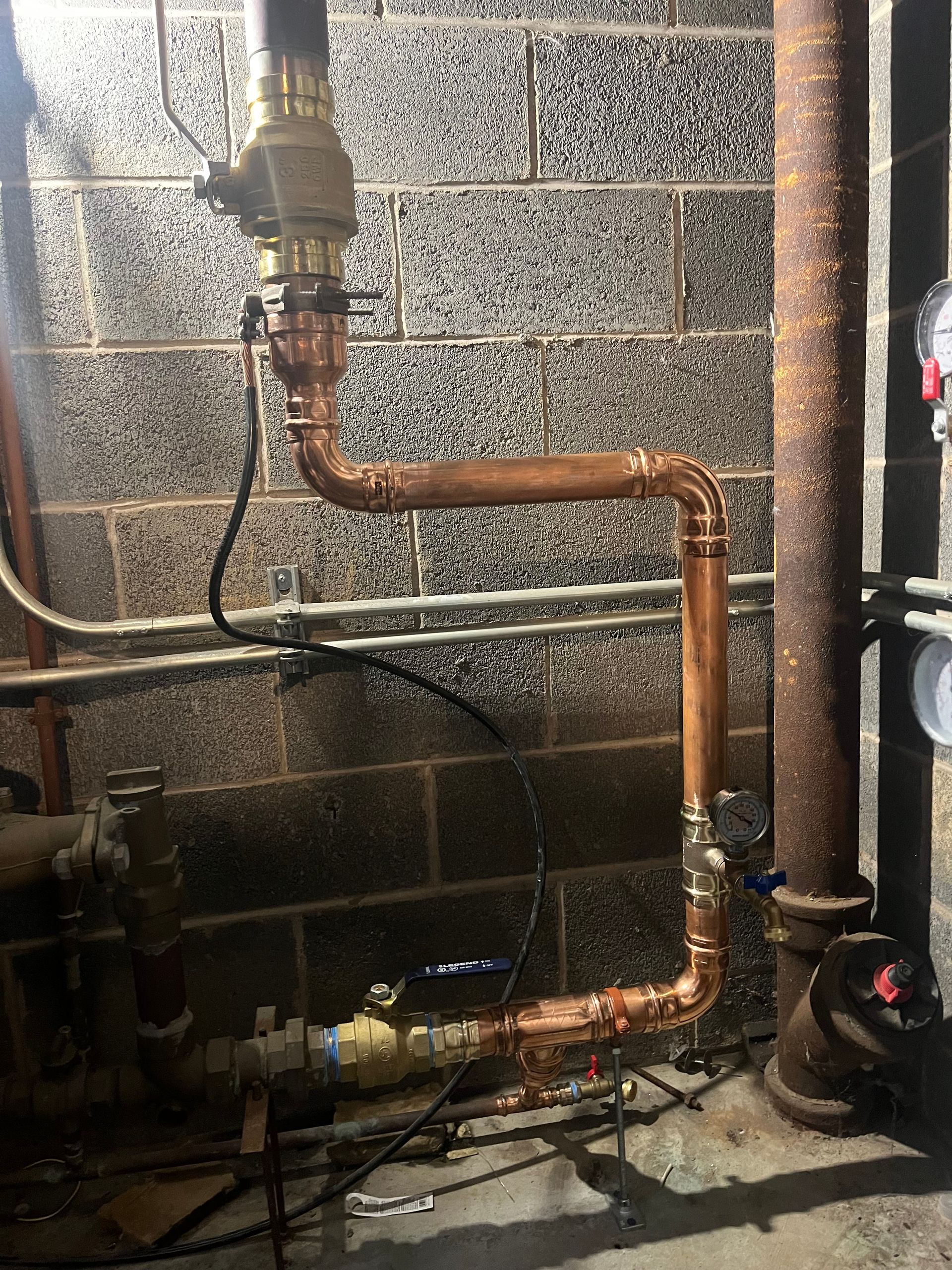

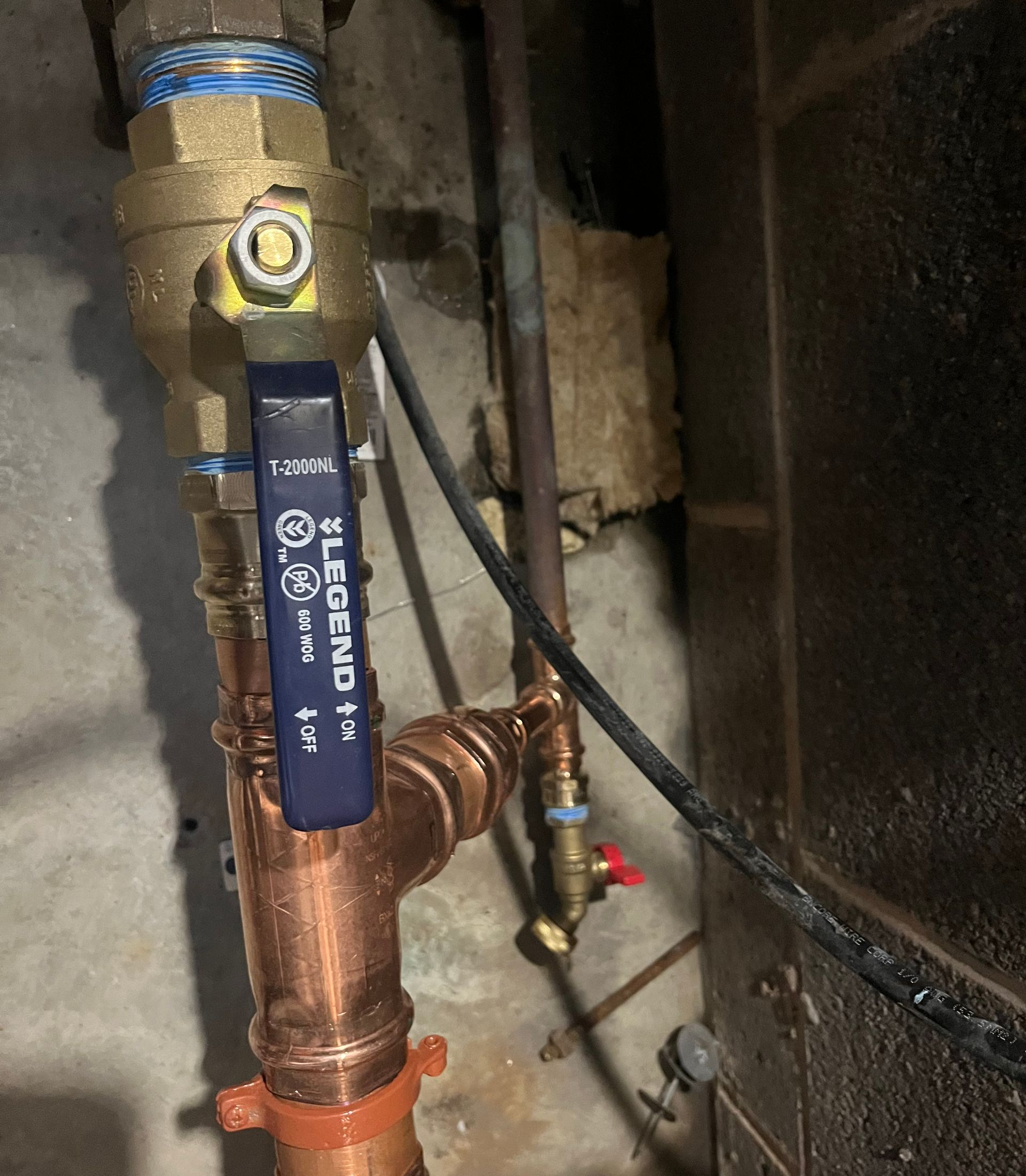

- We prepared the pipe ends, confirmed measurements, and installed the new 3-inch full-bore ball valve at the post-meter position, torquing all connections to manufacturer specifications.
- We flushed the system at the entry point to clear any debris that had been disturbed during the valve removal — a step that protects fixtures, appliances, and aerators throughout the home from sediment damage.

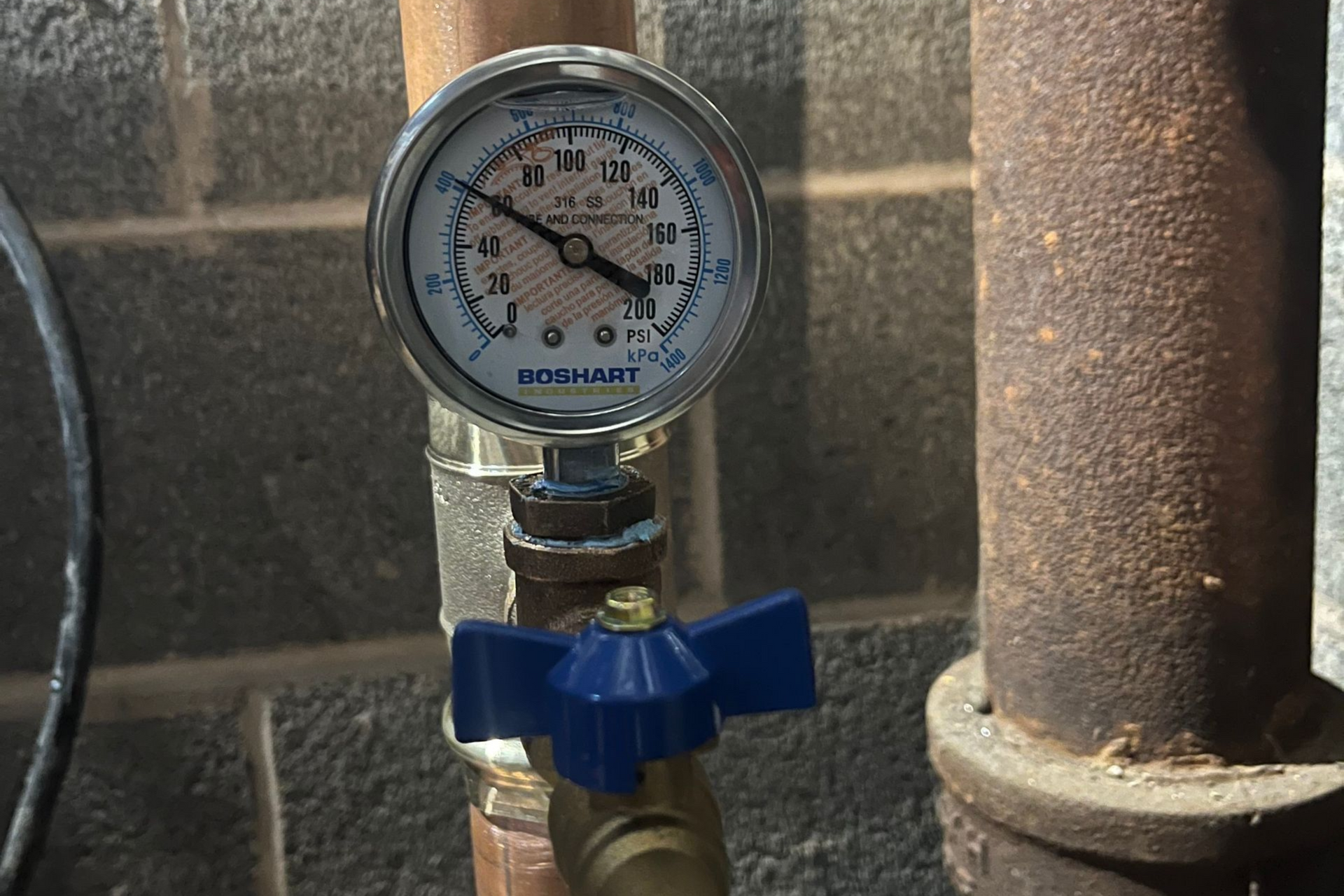

- We installed the 1/4-inch pressure monitoring gauge inline, positioned for easy visibility and long-term serviceability.
- We slowly restored water to the property, checked every joint and connection under live pressure, and confirmed a clean, leak-free result before considering the job complete.
The entire process, from first shutoff to final pressure check, took three hours.
The Homeowner Now Has A Well Water They Can Trust
When we left Loomis Place, the homeowner had something they had not had for years: complete, confident control over their home's water supply. The new ball valve operates smoothly with a single quarter-turn. The inline pressure gauge now gives them a live window into what is happening at the entry point of their system every single day.
Our team left the work area cleaner than we found it. No debris, no mess, no sign that a medium-scale plumbing operation had just taken place in the mechanical space. That is the standard we hold ourselves to on every job across New Haven, CT, from a small fixture repair to a full main line replacement.
The homeowner now has a post-meter assembly that is fully code-compliant, built with professional-grade components, and backed by a team that knows New Haven's infrastructure inside and out.
You might also want to read other of our Case Studies: Our Local Analysis & Risks of Oxford, CT’s well water
Get a Free Plumbing Inspection in New Haven, CT
If your home on Loomis Place, Whalley Avenue, Edgewood Avenue, or anywhere else in New Haven has an aging main shut-off valve, corroded entry-point piping, or water pressure you have never had anyone look at, do not wait for a failure to decide for you.
Our team at High Rock Water & Mechanical offers free plumbing inspections across New Haven, CT. We will assess your post-meter assembly, check your pressure, and give you a straight answer about what your system needs.
Main Shut-off Valve Project FAQ
How do I know if my main water shut-off valve needs to be replaced in New Haven, CT?
The most common signs are a valve handle that is stiff or impossible to turn, visible corrosion on the valve body, or water that will not fully stop flowing when the valve is closed. If your New Haven home has an older gate-style valve — common in properties built before the 1990s — we recommend having it inspected proactively before an emergency forces your hand.
What is a post-meter main shut-off valve?
The post-meter valve is the first isolation point on your property's side of the water meter. It is your home's master water switch. In an emergency — a burst pipe, a failed appliance connection, or a CT plumbing repair — this is the valve your plumber or you will reach for first. A valve that does not function correctly at that moment can turn a manageable situation into a catastrophic one.
Why should I install a pressure gauge at my water entry point in New Haven?
New Haven's municipal water supply, like most urban systems, can experience pressure fluctuations. A 1/4-inch inline pressure gauge at your entry point costs very little to install but gives you an immediate diagnostic tool. Sustained pressure above 80 PSI can damage water heaters, washing machine hoses, and fixture valves throughout your home. Knowing your baseline pressure is the first step toward protecting every water-using appliance you own.
How long does a main water valve replacement take in New Haven?
For a straightforward post-meter replacement on a single-family or multi-family property in New Haven, our team typically completes the job in two to four hours, depending on the existing condition of the surrounding piping. The home on Loomis Place was fully restored in three hours from first shutoff to final inspection.
Does the water authority need to be involved in a valve replacement?
It depends on where the shutoff needs to happen. If our team can isolate the water internally at the meter, the local water authority does not need to be involved. If the curb stop at the road must be shut off, that step falls under the water authority's responsibility. Our team assesses this during the initial inspection and handles all coordination transparently so there are no surprises on the day of the job.
